Laser cutting
A laser cuts flat shapes out of a sheet of metal or plastic. Send us a flat drawing (DXF, DWG, AI or EPS).
What it is

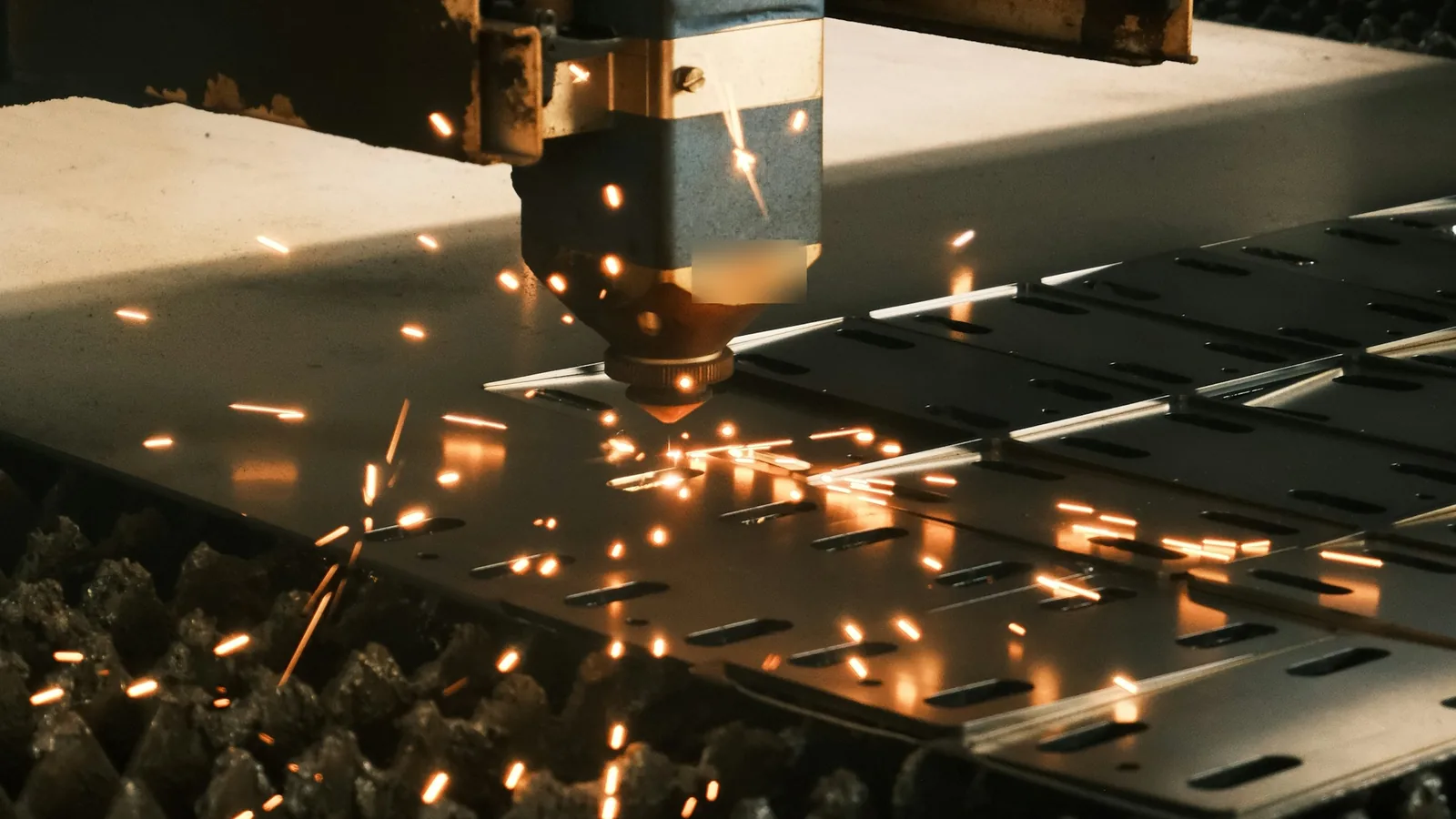

Laser cutting uses a focused laser beam to cut flat shapes out of a sheet. It is fast and accurate, and there is no tooling, so it suits both one-off parts and batches.
Laser cutting works from a flat 2D drawing (an outline of the shape), usually a DXF file. If your part also needs bending, choose sheet metal instead.
Good for
- Flat plates, brackets, gaskets and shims
- Panels, covers and signs
- Mounting plates with holes and slots
- Acrylic parts and displays
- Parts for prototypes and repairs
Materials
These are the materials you can choose in the price calculator. If you are not sure, keep the first option — it suits most parts. See all materials for more detail.
- Steel (mild steel) — strong and low cost
- Stainless steel (304) — does not rust
- Aluminium (5251) — light, does not rust
- Acrylic — clear or coloured plastic
Surface finishes
A finish changes how the part looks and feels, and can protect it. It does not change the shape.
- As cut — clean laser edge
- Deburred — sharp edges smoothed
- Powder coated — a tough painted colour finish
Which file to send
Send a DXF file drawn at full size (1:1) in millimetres, with only the cutting lines — no frames, title blocks or dimensions in the same layer. Tell us the material thickness in the order notes. If you only have a 3D model of a flat part, upload it and we will check it.
Tips for a good result and a lower price
- Holes should be at least as wide as the sheet is thick.
- Keep holes and slots at least one sheet thickness away from the edge.
- Close all outlines — open lines cannot be cut.
- Several different parts can share one order; this often lowers the price.
Common questions
I don’t have a DXF. What can I send?
Send a 3D model, a PDF drawing or even a clear sketch with sizes. Email it to us and we will tell you what is possible.
Which thickness can I choose?
Available thicknesses depend on the material. Tell us the thickness you need in the order notes and we will confirm.
Is the edge sharp?
A laser edge is clean but can be sharp on metal. Choose the “Deburred” finish to have edges smoothed.
